Minimum Fireplace Dimensions

Minimum Fireplace Dimensions
Your guide to verifying burner sizing, clearance requirements, and BTU ratings for Grand Canyon gas log and burner systems.

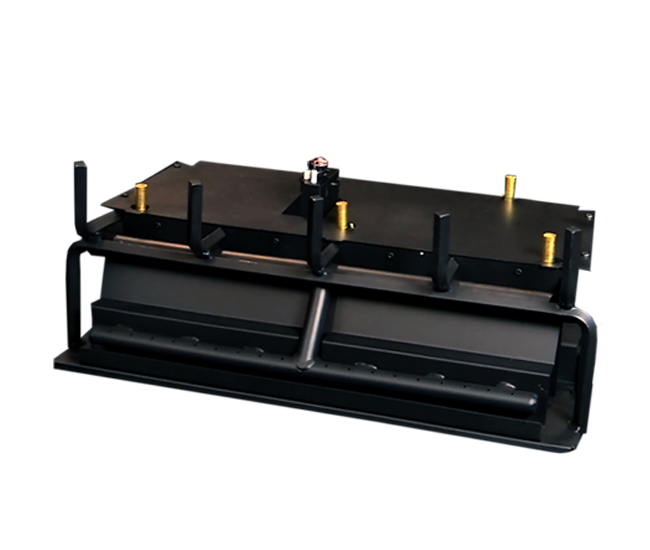

Lava Burner

Lava Burner

BTU note: shows High / Low
Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
28″
16″
18″
22″
40k / 25k
40k / 18k
24″
34″
16″
24″
22″
55k / 35k
55k / 30k
30″
40″
18″
30″
26″
75k / 45k
75k / 40k
36″
46″
18″
36″
26″
85k / 55k
85k / 48k

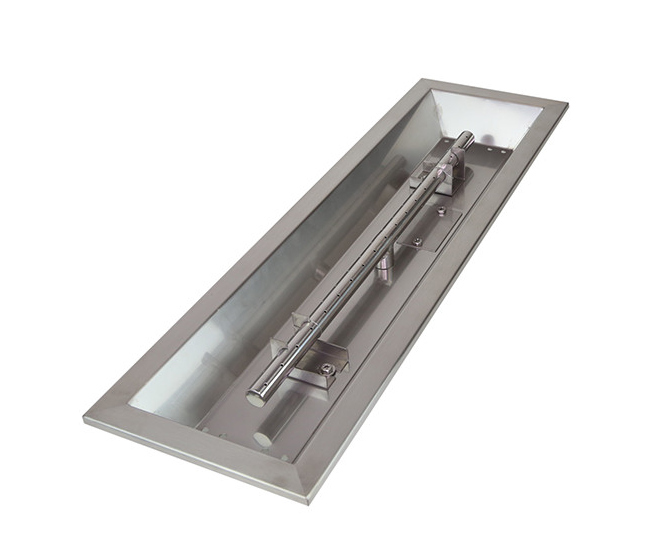

Bedrock Vented Linear Drop-in Burner

Bedrock Vented Linear Drop-in Burner

Drop-in Burner

BTU note: values shown as High/Low
Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
24″
24″
15″
24″
20″
30k/20k
30k/15k
36″
36″
15″
36″
20″
45k/30k
45k/20k
48″
48″
15″
48″
20″
60k/40k
60k/30k
60″
60″
15″
60″
20″
75k/50k
75k/40k
72″
72″
15″
72″
20″
90k/60k
90k/50k
84″
84″
15″
84″
20″
105k/70k
105k/55k
96″
96″
15″
96″
20″
120k/80k
120k/60k

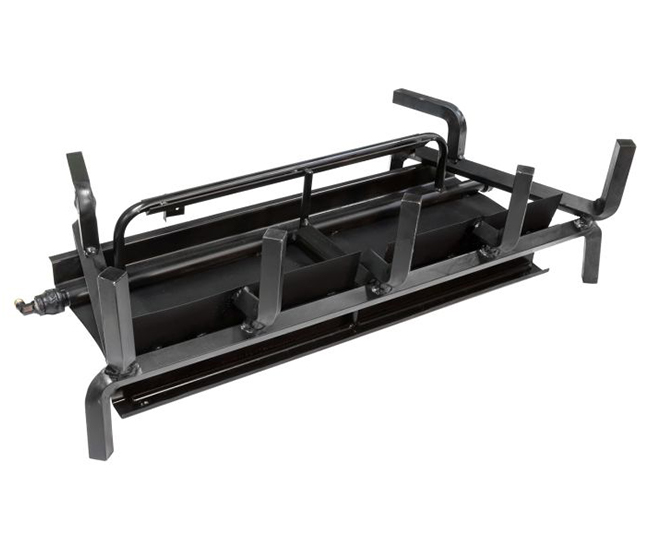

Jumbo Slimline Burner

Jumbo Slimline Burner

With controls (Match Lite, HCSPQMKN/LP, HCMVQMKN/LP, MMVKR-NG/LP, MVKEIKN/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
24″
36″
21″
24″
30″
103k
95k
30″
42″
21″
30″
30″
112k
110k
36″
48″
21″
36″
30″
150k
145k
42″
54″
21″
42″
30″
165k
160k
48″
60″
21″
48″
30″
195k
190k
60″
72″
21″
60″
30″
230k
225k

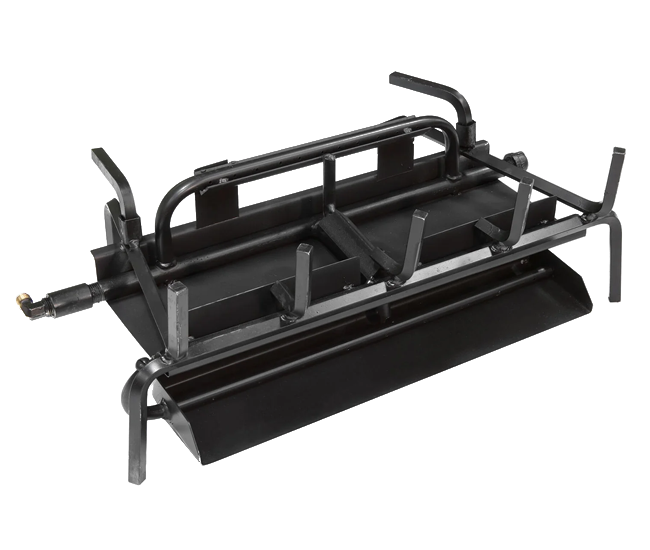

3-Burner with controls

3 Burner

With controls (Match Lite, SPQMKN/LP, MVQMKN/LP, MMVKR-NG/LP, MVKEIKN/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
30″
14″
18″
16″
46k
41k
21″
33″
14″
21″
16″
58k
58k
24″
36″
14″
24″
16″
74k
64k
30″
42″
16″
30″
16″
102k
91k
36″
48″
16″
36″
16″
111k
106k
42″
54″
16″
42″
16″
120k
121k

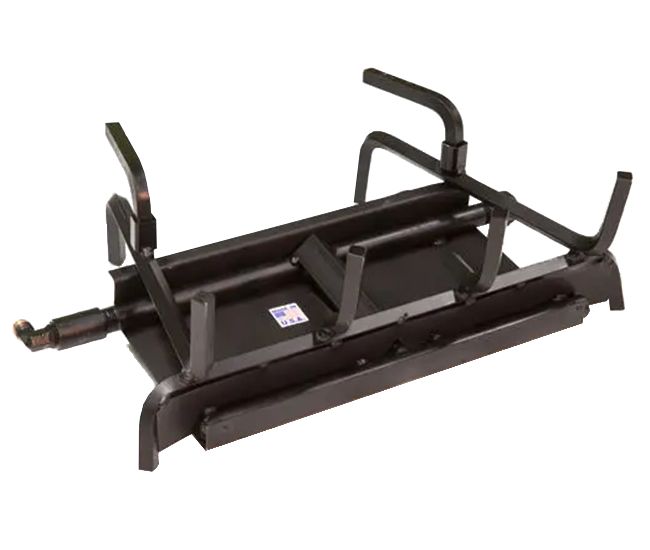

2-Burner MVKEI

2 Burner

With controls (MVKEIKN/LP)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
36″
14″
24″
14″
52k
49k
21″
39″
14″
27″
14″
58k
58k
24″
42″
14″
30″
14″
64k
64k
30″
48″
16″
36″
14″
76k
79k
36″
54″
16″
42″
14″
81k
83k
42″
60″
16″
48″
14″
86k
87k
2-Burner with controls

2 Burner

With controls (Match Lite, SPQMKN/LP, MVQMKN/LP, MMVKR-NG/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
30″
14″
18″
14″
52k
49k
21″
33″
14″
21″
14″
58k
58k
24″
36″
14″
24″
14″
64k
64k
30″
42″
16″
30″
14″
76k
79k
36″
48″
16″
36″
14″
81k
83k
42″
54″
16″
42″
14″
86k
87k
48″
60″
16″
48″
16″
150k
145k
60″
72″
16″
60″
16″
175k
165k

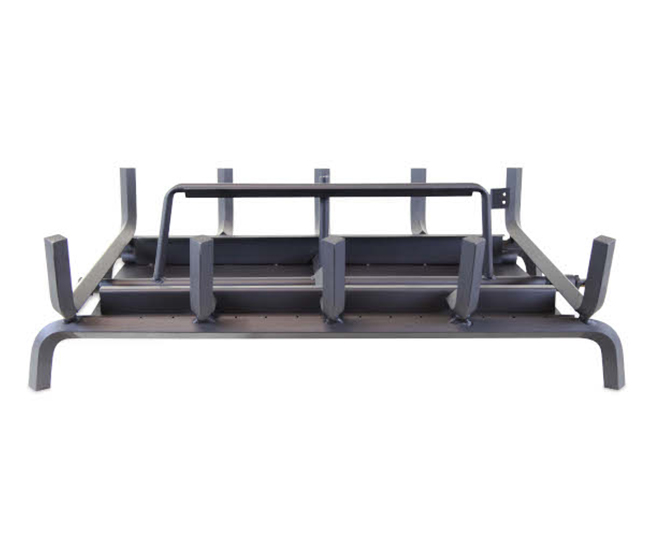

Jumbo Burner

Jumbo Burner

With controls (Match Lite, HCSPQMKN/LP, HCMVQMKN/LP, EIS-N/LP)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
36″
48″
24″
36″
30″
150k
145k
42″
54″
24″
42″
30″
165k
160k
48″
60″
24″
48″
30″
195k
190k
60″
72″
24″
60″
30″
230k
225k
72″
84″
24″
72″
30″
240k
230k
84″
96″
24″
84″
30″
270k
240k
96″
108″
24″
96″
30″
300k
275k
108″
120″
24″
108″
30″
350k
325k
120″
132″
24″
120″
30″
500k
450k

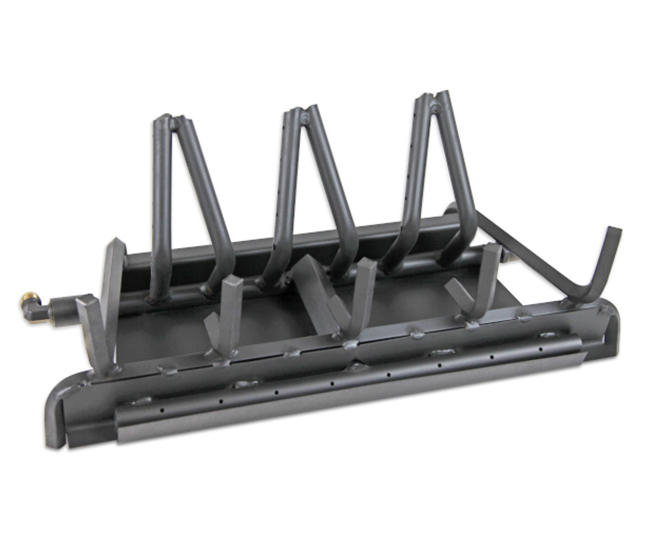

KIVA Burner

KIVA Burner

With controls (Match Lite, SPQMKN/LP, MVQMKN/LP, MMVKR-NG/LP, MVKEIKN/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
24″
12″
12″
18″
45k
35k
24″
30″
12″
18″
18″
52k
49k
30″
35″
12″
21″
18″
65k
64k

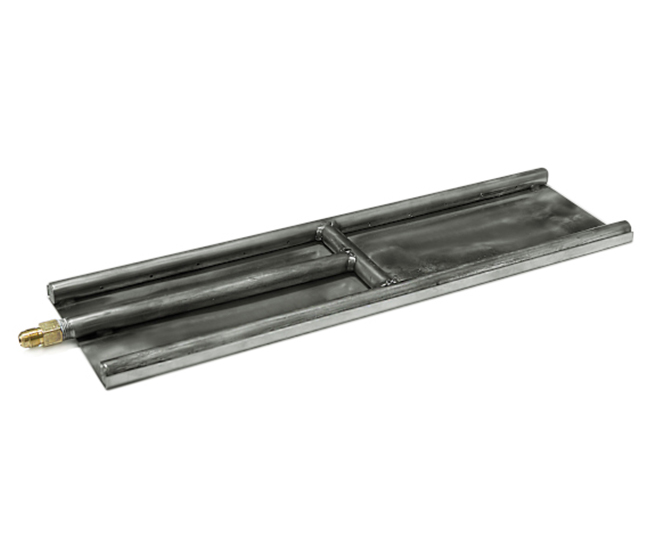

Glass H-Burner with controls

Glass H-Burner

With controls (Match Lite, SPQMKN/LP, MVQMKN/LP, MMVKR-NG/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
30″
14″
18″
10″
52k
49k
21″
33″
14″
21″
10″
58k
58k
24″
36″
14″
24″
10″
64k
64k
30″
42″
16″
30″
10″
76k
79k
36″
48″
16″
36″
10″
81k
83k
42″
54″
16″
42″
10″
86k
87k
48″
60″
16″
48″
10″
150k
145k
60″
72″
16″
60″
10″
175k
165k

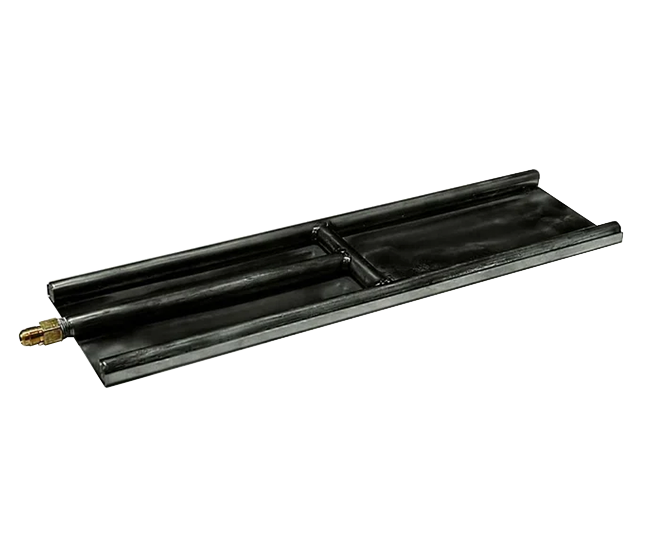

Glass H-Burner MVKEI

Glass H-Burner

With controls (MVKEI/LP)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
36″
14″
24″
10″
52k
49k
21″
39″
14″
27″
10″
58k
58k
24″
42″
14″
30″
10″
64k
64k
30″
48″
16″
36″
10″
76k
79k
36″
54″
16″
42″
10″
81k
83k
42″
60″
16″
48″
10″
86k
87k

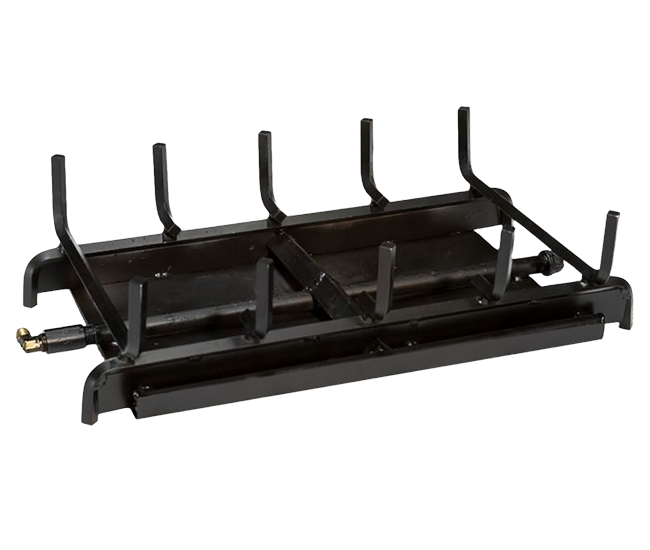

2-Burner See Through

2 Burner See Through

With controls (Match Lite, HCSPQMKN/LP, HCMVQMKN/LP, MMVKR-NG/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
30″
14″
30″
14″
103k
93k
24″
36″
14″
36″
14″
118k
100k
30″
42″
16″
42″
14″
128k
115k
36″
48″
16″
48″
14″
135k
125k
42″
54″
16″
54″
14″
140k
130k
48″
60″
16″
60″
16″
150k
145k
60″
72″
16″
72″
16″
175k
165k
2-Burner See Through MVKEI

2 Burner See Through

With controls (MVKEIKN/LP)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
36″
14″
36″
14″
103k
93k
24″
42″
14″
42″
14″
118k
100k
30″
48″
16″
48″
14″
—
115k
36″
54″
16″
54″
14″
—
125k
42″
60″
16″
60″
14″
—
130k

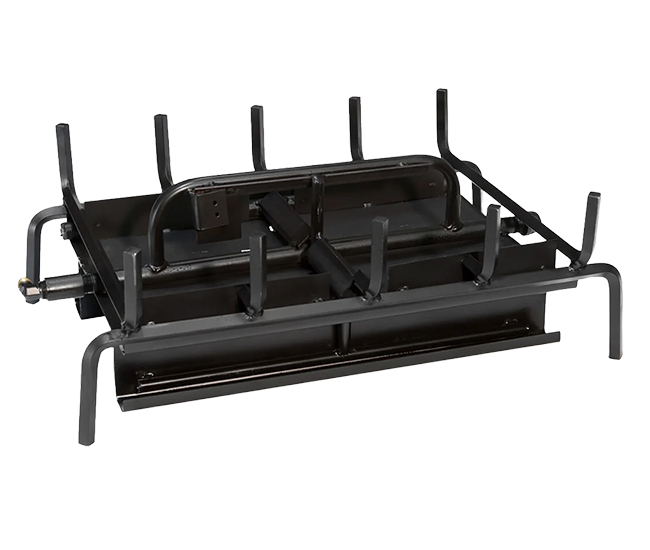

3-Burner See Through

3 Burner See Through

With controls (Match Lite, HCSPQMKN/LP, HCMVQMKN/LP, MMVKR-NG/LP, MVKEIKN/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
18″
30″
14″
30″
16″
103k
93k
24″
36″
14″
36″
16″
118k
100k
30″
42″
16″
42″
16″
128k
115k
36″
48″
16″
48″
16″
135k
125k
42″
54″
16″
54″
16″
140k
130k

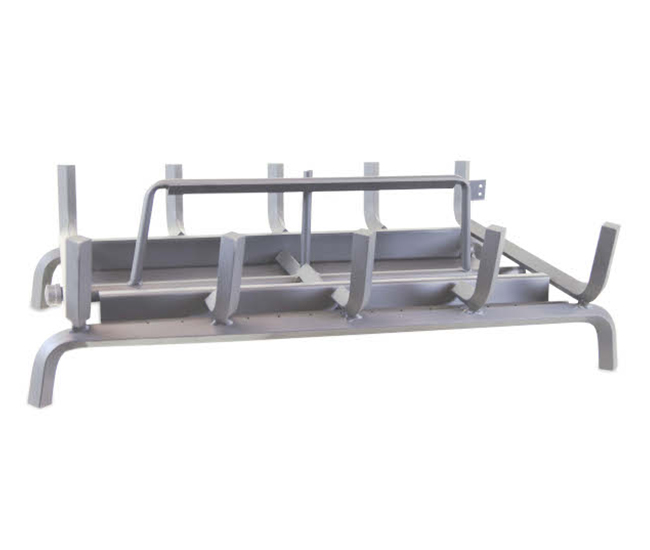

Jumbo Burner See Through

Jumbo Burner See Through

With controls (Match Lite, HCSPQMKN/LP, HCMVQMKN/LP, MMVKR-NG/LP, MVKEIKN/LP, EIS-N/L)

Size
Front Width
Depth
Back Width
Height
BTU NG
BTU LP
24″
36″
26″
36″
30″
103k
95k
30″
42″
26″
42″
30″
112k
110k
36″
48″
26″
48″
30″
165k
155k
42″
54″
26″
54″
30″
185k
170k
48″
60″
26″
60″
30″
210k
195k
60″
72″
26″
72″
30″
250k
235k
